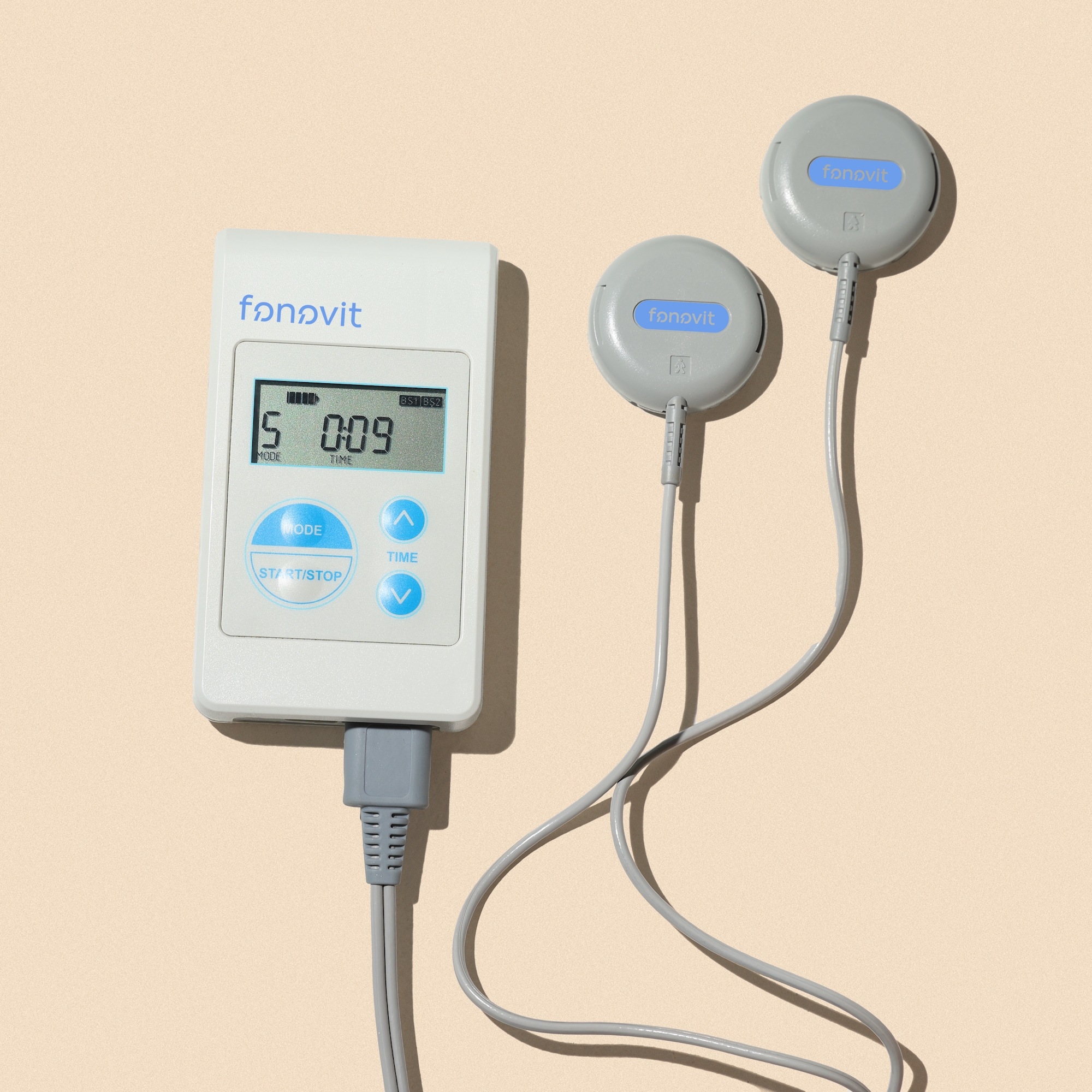

Fonovit

€ 600.00 EUR

Targeted vibration medical device that utilizes low-intensity vibrations to improve blood and lymph flow to reduce inflammation and pain.

Certified medical device
Free delivery
60 day money-back guarantee
Frequently asked questions
Is it safe for everyone to use?
What is Fonovit and how does it work?
Why does the device make a sound during use?
Are there any contraindications for Fonovit?
Technical characteristics
Duration of continuous work, hours, not less than
24
Average term of service, years
5
Overall dimensions, mm, not more than main block
121х70х24
Weight, net (set), kg, not more than
2,0
Overall dimensions, mm, not more than Main block
121х70х24
Power supply unit
80х50х90
Vibroacoustic module (vibraphone A)
51х41х15

Power supply unit

Model
BPV-12NS-2e
Supply voltage AC, V
220-240
Power supply frequency, Hz
50
Power consumption, VА, not more than
15
Output voltage, V
12±2

Length of cables

Power supply unit cable, m
1,8+0,1
Vibraphone B1 cable, m
1,3+0,5
Vibraphone B1 cable, m
1,3+0,5

Internal battery

Model
LI-14500
Type
Rechargeable lithium-ion cylindrical cell
Nominal voltage
3,7V
Number of batteries
2 pieces
Capacity – C5mAh
700 mAh
Service life
300cycles(≥80% C5mAh)

Setting Parameters

Length of a single cycle of microvibration frequency changes, sec., within
60±10
Number of microvibrations frequency subranges:
- Lower frequency of the first subrange, Hz, within
10±10
- Upper frequency of the first subrange, Hz, within
1000±200
- Lower frequency of the second subrange, Hz, within
240±80
- Upper frequency of the second subrange, Hz, within
8500±1500
Membrane’s microvibrations amplitude on the lowest possible frequency, μm, within
- double vibrophone B1 (white)
4
- double vibrophone B2 (green)
12
- Vibroacoustic modules type A
12

Modes

The device provides not less than fourfold decrease in amplitude of microvibration. Modulation frequency Fm, depending on the MODE parameter set within the limits shown below.
Mode
0
1
2
3
4
5
6
7
8
9
Fm, Hz
–
0,3
0,4
0,5
0,7
1,0
1,5
2,5
3,5
4,5
